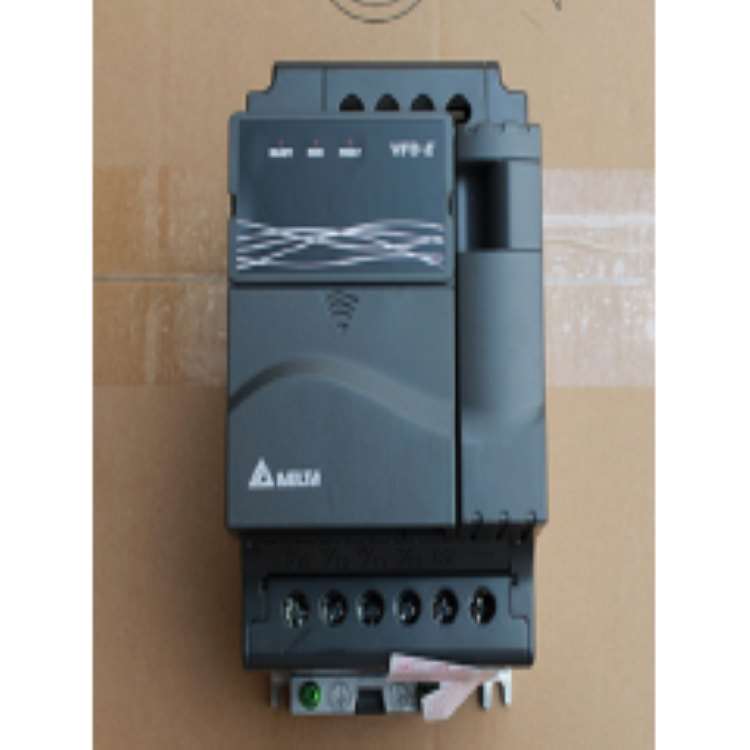

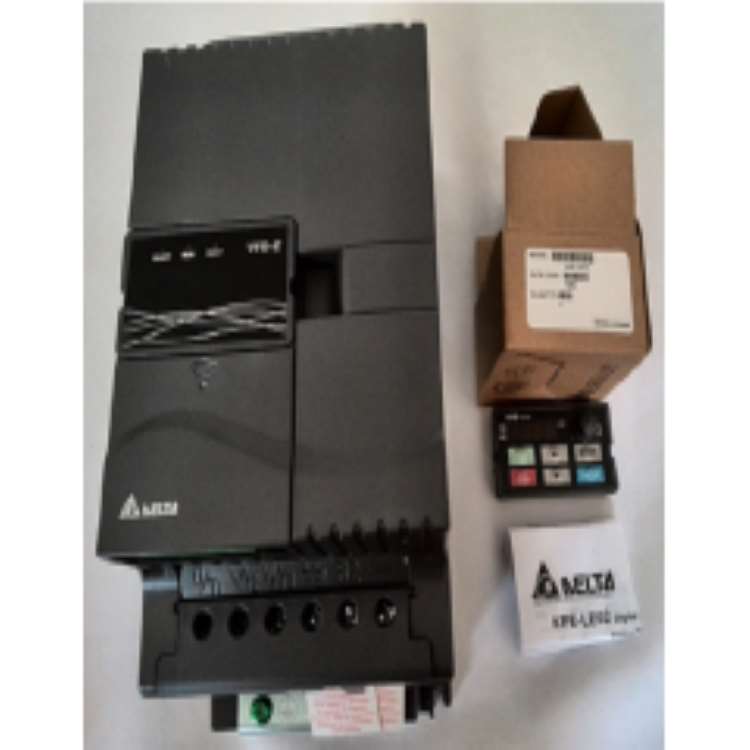

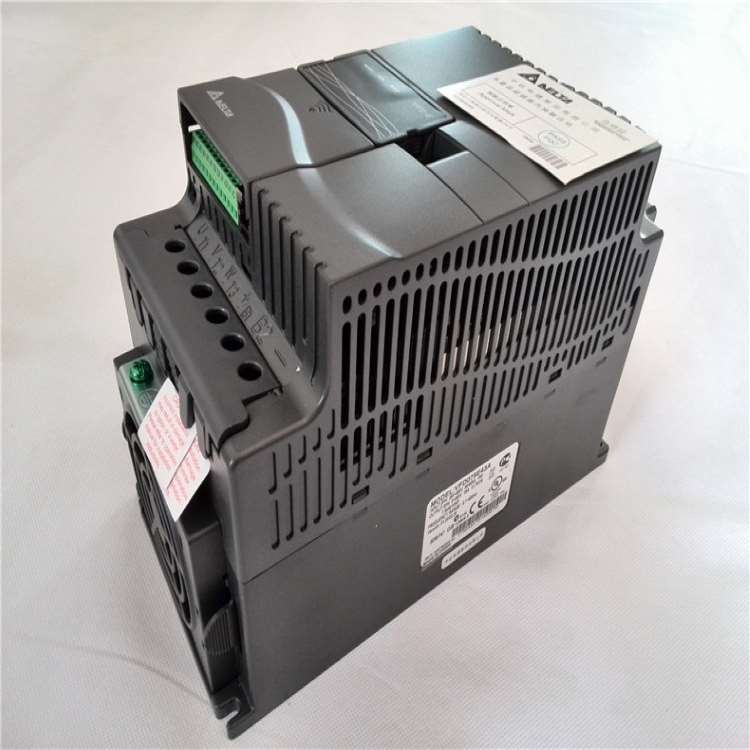

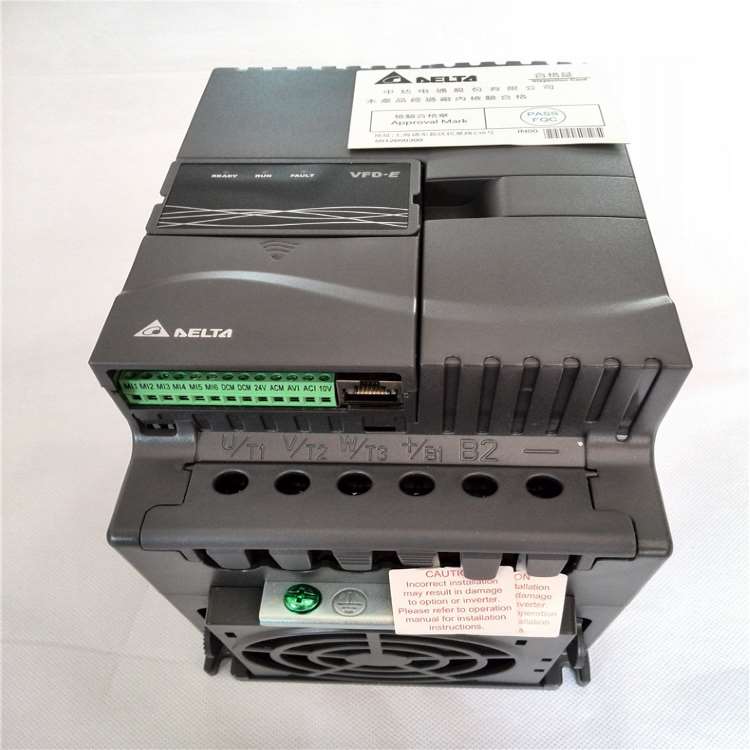

VFD022E43A, VFDS – E, in modular inverter of Delta including panel adopts elastic module design, can write simple program storage and execution and add special function expansion card and communication card, is the representative of small horsepower to meet the diversified needs of the industry. Meanwhile, VFD022E43A, VFDS – E, in modular inverter of Delta including panel support multiple communication protocols, including PROFIBUS, DEVICENET, LONWORKS and CANOpen.
VFD022E43A, VFDS – E, in modular inverter of Delta including panel adopts elastic module design, can write simple program storage and execution and add special function expansion card and communication card, is the representative of small horsepower to meet the diversified needs of the industry. Meanwhile, VFD022E43A, VFDS – E, in modular inverter of Delta including panel support multiple communication protocols, including PROFIBUS, DEVICENET, LONWORKS and CANOpen.
1.High efficiency heat dissipation design, can be installed side by side, save space
2.With easy to maintain removable cooling fan, easy to install and remove
3.Structure design into easy disassembly modular design, reduce material, easy to maintain.The fan, the surface plate can be removed, and the function card can be expanded flexibly.
4.VFD022E43A, VFDS – E, in modular inverter of Delta including panel use RS-485 communication interface, standard Modbus communication protocol.
5.(230V single-phase and 460V three-phase models) built-in EMI filter, effectively reduce electromagnetic interference, in line with EN61800-3 standard specification.
6.Support multiple communication protocols, including PROFIBUS, DEVICENET, LONWORKS and CANOpen.
7.Flexible and elastic extension functions can be applied, such as 1/0 card, Relay card, PG card and USB card, etc.
The application of VFD022E43A, VFDS – E, in modular inverter of Delta including panel: Power: boiler drum blower, water pump, centrifugal mixer, conveyor belt, lifting power station, flywheel, etc.Petroleum: oil pump, electric submersible pump, water injection pump, pumping unit, etc. paper industry: paper machine, pump, mill, fan, mixer, blower, etc.
| Input voltage level | 115V | |||||||
| Model | 002 | 004 | 007 | |||||
| Applicable motor power (KW) | 0.2 | 0.4 | 0.75 | |||||
| Applicable motor power (HP) | 0.25 | 0.5 | 1.0 | |||||
| Rated output capacity (kVA) | 0.6 | 1.0 | 1.6 | |||||
| Rated output current (A) | 1.6 | 2.5 | 4.2 | |||||
| Maximum Output Voltage (V) | Three phases correspond to twice the input voltage | |||||||
| Output frequency range (Hz) | 0.1~600Hz | |||||||
| Carrier frequency range (kHz) | 1-15 | |||||||
| Input current (A) | Single phase power supply | |||||||
| 6 | 9 | 18 | ||||||
| Rated voltage · frequency | Single phase power supply 100-120V□50/60Hz | |||||||
| Allowable input voltage range | ±10%(90-132V) | |||||||
| Allow power frequency variation | ±5%(47-63Hz) | |||||||
| Cooling system | Natural air cooling | Forced air cooling | ||||||
| Weight (kg) | 1.2 | 1.2 | 1.2 | |||||
| Input voltage level | 230V | |||||||
| Model | 002 | 004 | 007 | 015 | 022 | 037 | 055 | 075 |
| Applicable motor power (KW) | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 |
| Applicable motor power (HP) | 0.25 | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.5 | 10.0 |
| Rated output capacity (kVA) | 0.6 | 1.0 | 1.6 | 2.9 | 4.2 | 6.5 | 9.5 | 12.5 |
| Rated output current (A) | 1.6 | 2.5 | 4.2 | 7.5 | 11.0 | 17.0 | 25.0 | 33.0 |
| Maximum Output Voltage (V) | Three phases correspond to twice the input voltage | |||||||
| Output frequency range (Hz) | 0.1~600Hz | |||||||
| Carrier frequency range (kHz) | 1-15 | |||||||
| Input current (A) | Single phase/three phase power supply | Three-phase power supply | ||||||
| 4.9/1.9 | 6.5/2.7 | 9.7/5.1 | 15.7/9 | 24/15 | 20.6 | 26 | 34 | |
| Rated voltage · frequency | Single phase three-phase power supply 200-240V□50/60Hz | Three-phase power supply 200-240V□50/60Hz | ||||||
| Allowable input voltage range | ±10%(180-264V) | |||||||
| Allow power frequency variation | ±5%(47-63Hz) | |||||||
| Cooling system | Natural air cooling | Forced air cooling | ||||||
| Weight (kg) | 1.1 | 1.1 | 1.1 | 1.9 | 1.9 | 1.9 | 3.5 | 3.5 |
| Input voltage level | 460V | |||||||
| Model | 002 | 004 | 015 | 022 | 037 | 055 | 075 | 110 |
| Applicable motor power (KW) | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11.0 |
| Applicable motor power (HP) | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 7.5 | 10.0 | 15.0 |
| Rated output capacity (kVA) | 1.2 | 2.0 | 3.3 | 4.4 | 6.8 | 9.9 | 13.7 | 18.3 |
| Rated output current (A) | 1.5 | 2.5 | 4.2 | 5.5 | 8.5 | 13.0 | 18.0 | 24.0 |
| Maximum Output Voltage (V) | Three phases correspond to twice the input voltage | |||||||
| Output frequency range (Hz) | 0.1~600Hz | |||||||
| Carrier frequency range (kHz) | 1-15 | |||||||
| Input current (A) | Three-phase power supply | |||||||
| 1.9 | 3.2 | 4.31 | 7.1 | 11.2 | 14 | 19 | 26 | |
| Rated voltage · frequency | Three-phase power supply 380-480V□50/60Hz | |||||||
| Allowable input voltage range | ±10%(342-528V) | |||||||
| Allow power frequency variation | ±5%(47-63Hz) | |||||||
| Cooling system | Natural air cooling | Forced air cooling | ||||||
| Weight (kg) | 1.2 | 1.2 | 1.2 | 1.9 | 1.9 | 4.2 | 4.2 | 4.2 |
Application of VFD022E43A, VFDS – E, in modular inverter of Delta including panel
1.Iron and steel: rolling mill, roller table, fan, pump, crane, ladle car, converter tilting, etc.
2.Steel rolling line: wire drawing machine, winding machine, blower, pump, lifting machinery, fixed length shear, automatic feeding.
3.Power: boiler drum blower, water pump, centrifugal mixer, conveyor belt, lifting power station, flywheel, etc.
4.Petroleum: oil pump, electric submersible pump, water injection pump, pumping unit, etc.
5.Paper industry: paper machine, pump, mill, fan, mixer, blower, etc.
After-sales service
Online support and Video technical support.
