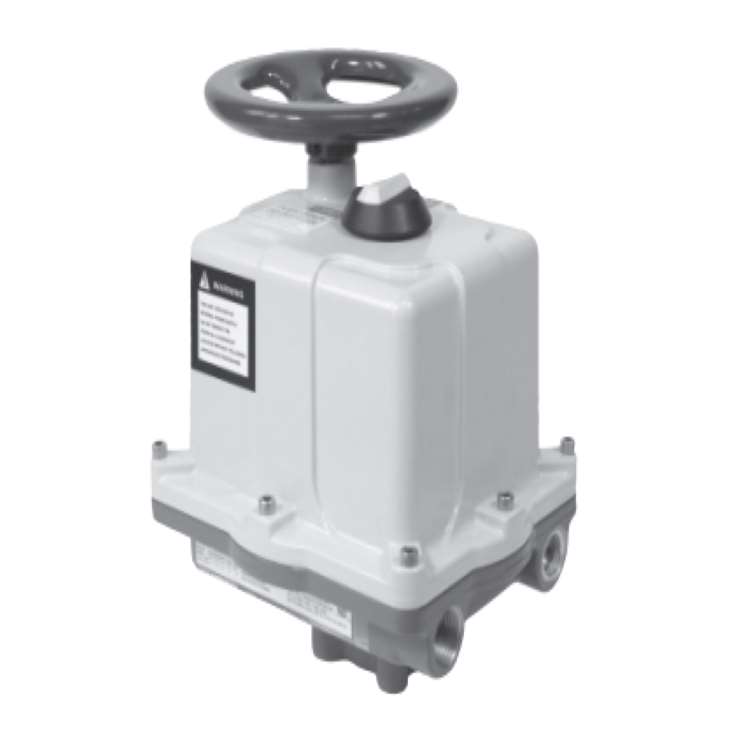

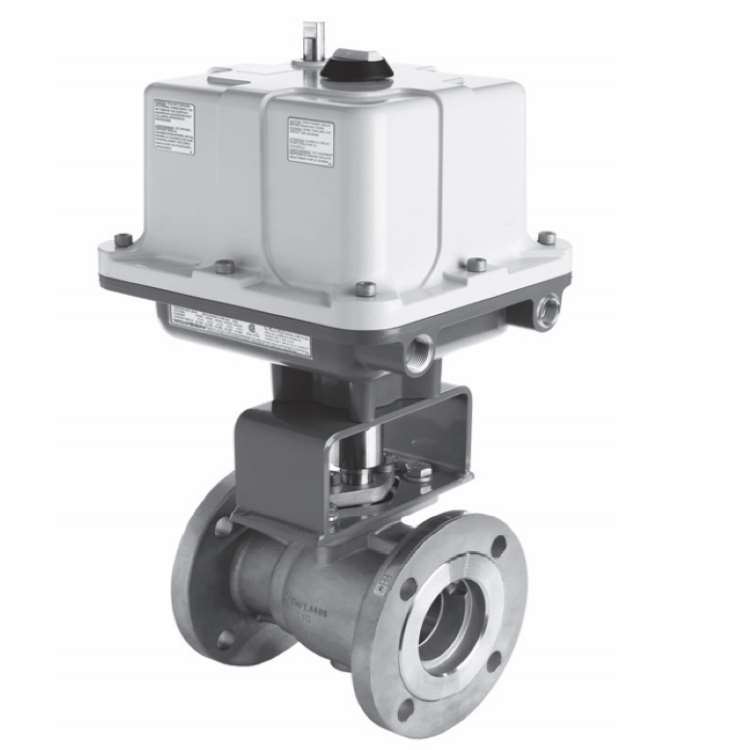

The VALVCON ADC-Series continuous duty electric actuator of Metso is a continuous-duty, and extremely versatile brushless DC electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. Notable standard features of VALVCON ADC-Series continuous duty electric actuator of Metso include universal power and control, holding brake, heater, and CSA (C US) certification, CE compliance and ATEX approval (WX models).
The VALVCON ADC-Series continuous duty electric actuator of Metso is a continuous-duty, and extremely versatile brushless DC electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. Notable standard features of VALVCON ADC-Series continuous duty electric actuator of Metso include universal power and control, holding brake, heater, and CSA (C US) certification, CE compliance and ATEX approval (WX models).
VALVCON ADC-Series continuous duty electric actuator of Metso have following features:
Universal power input; accepts 24VAC 50/60 Hz (1PH), 115/230VAC 50/60 Hz (1PH); 12/24VDC

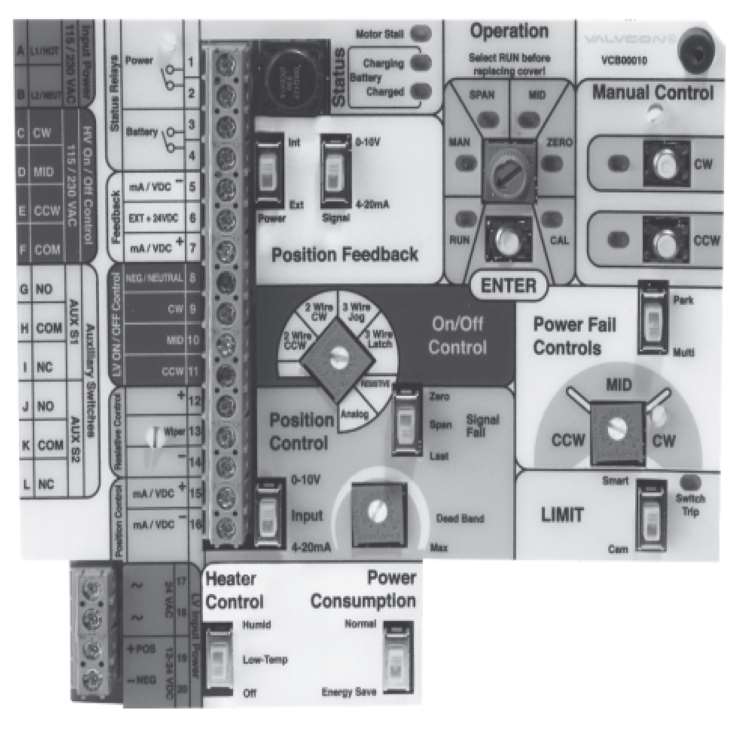

Universal control; on/off or modulating from the same package
Loaded with standard features
Continuous duty cycle
Agency approvals of VALVCON ADC-Series continuous duty electric actuator of Metso are standard
Optional internal battery back-up power drives to “safe” position after loss of input power
Continuous duty applications
Applications that may evolve over time; can be re-configured
Low-power solar applications
Furnace burner control
Water reclamation
Plunger and gas lift at the wellhead
Steam injection
Separators
Power generation
Metso Group of Finland is a leading global supplier to the process and control industry. With operations in more than 50 countries, metso employs approximately 22,000 people worldwide. The main business areas are optical fiber and paper technology, ore processing and automation control. The company is listed on the Helsinki and New York stock exchanges. Metso is a global engineering and technology company with 2006 sales of approximately EUR 5 billion. We have 25, 500 employees serving customers in more than 50 countries. Used in paper making, mining, energy industry, petroleum, chemical industry and other fields.
| Model | VALVCON ADC-Series |
| SERIES | ADC & LADC |
| TORQUE OUTPUT | 17-68 Nm, 150-600 lb-in, 12-50 lb-ft, Series ADC |
| 113-339 Nm, 1000-3000 lb-in, 83-250 lb-ft, Series LADC | |
| DUTY CYCLE | 100%, @ 40°C / 104°F |
| OPERATION | Reversing |
| ENCLOSURE | NEMA 4/4X or NEMA 4/4X/7&9 |
| TEMPERATURE RANGE | -40°C to 66°C / -40°F to 150°F |
| ATEX Temperature range -20°C to 66°C / -4°F to 150°F | |
| VOLTAGE | 24VAC 50/60 Hz (1PH), 115VAC 50/60 Hz (1PH), 230VAC 50/60 Hz (1PH), 12VDC, 24VDC |
Application of VALVCON ADC-Series continuous duty electric actuator of Metso
Upstream Oil and Gas
Food and beverage processing
Water/Wastewater
HVAC
Low-power solar applications
Furnace burner control
Water reclamation
Plunger and gas lift at the wellhead
Steam injection
Separators
Power generation
