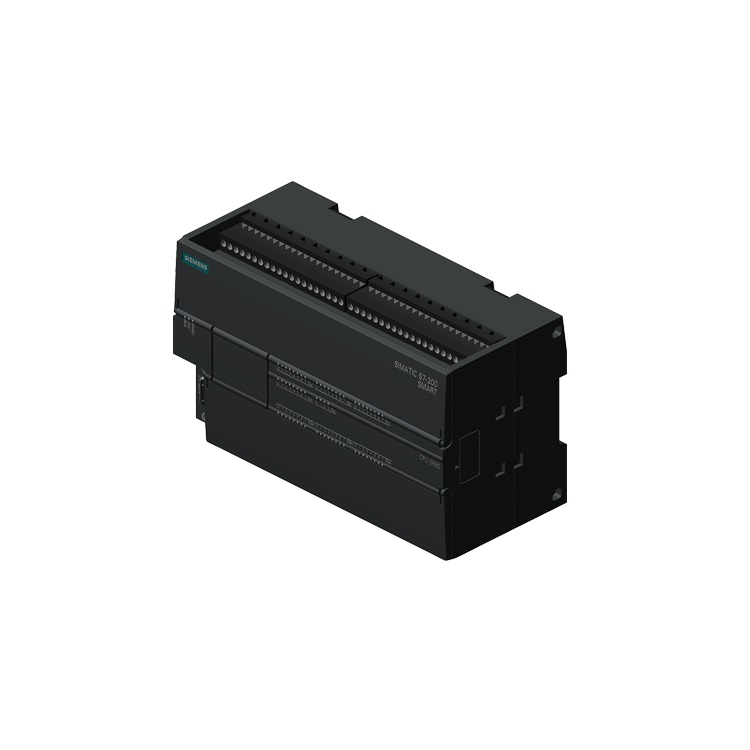

Siemens 6ES7288-1SR60-0AA0 CPU 1SR60

Siemens 6ES7288-1SR60-0AA0 CPU 1SR60 uses a dedicated high-speed chip, the basic instruction execution time can reach 0.15μs. Siemens 6ES7288-1SR60-0AA0 CPU 1SR60 is equipped with super capacitors, which can still guarantee the normal operation of the clock even when the power is off. Siemens 6ES7288-1SR60-0AA0 CPU 1SR60 adopts the pin type connection, the module connection is closer.

Product Features:

Siemens 6ES7288-1SR60-0AA0 CPU 1SR60
SIMATIC S7-200 SMART, CPU SR60, upper, AC/DC/relay, airborne I/O: 36 24V DC digital inputs; 24 2A relay digital outputs; Power supply: 85-264V AC at 47-63Hz, program Memory/data memory 50 KB

Siemens 6ES7288-1SR60-0AA0 CPU 1SR60
SIMATIC S7-200 SMART PLC is designed to suit the needs of developing markets that have higher pressures of price and demands on performance. Providing an excellent performance-to-price ratio, SIMATIC S7-200 SMART PLC when combined with other SMART drive products from Siemens helps in building extremely cost effective efficient automation solutions. The perfect combination of Siemens SIMATIC automation products and SINAMICS drive products, has created new micro automation solutions that are economical, reliable and easy to use.

The S7-200 SMART series is a line of micro-programmable logic controllers (Micro PLCs) that can control a variety of automation applications. Compact design, low cost, and a powerful instruction set make the S7-200 SMART a perfect solution for controlling small applications. The wide variety of S7-200 SMART models and the Windows-based programming tool give you the flexibility you need to solve your automation problems.

The S7-200 SMART series of micro-programmable logic controllers (Micro PLCs) can control a wide variety of devices to support your automation needs.The CPU monitors inputs and changes outputs as controlled by the user program, which can include Boolean logic, counting, timing, complex math operations, and communications with other intelligent devices. The compact design, flexible configuration, and powerful instruction set combine to make the S7-200 SMART a perfect solution for controlling a wide variety of

Product Parameters:

Product name Siemens 6ES7288-1SR60-0AA0 CPU 1SR60
Manufacturer Siemens
Brand Siemens
Part Number 6ES7288-1SR60-0AA0
Input current Current consumption (rated value) 220 mA; at AC 240 V

Current consumption, maximum value 370 mA; at AC 120 V

Turn-on current, maximum value 16.3 A; at 264 V

Output current Current output, maximum value 300 mA; 24 V DC sensor power supply

For backplane bus (DC 5 V), maximum 1.4 A; maximum 5 V DC, for EM bus

Power loss Power loss, maximum value 25 W
Size 175*100*81mm
Weight 611.5g

Application and After-Sales Service:

PLC has been widely used in various industries such as steel, petroleum, chemical industry, electric power, building materials, machinery manufacturing, automobiles, textiles, transportation, environmental protection, culture and entertainment at home and abroad.
The usage can be roughly classified into the following categories:
1. Logic control of the switch
2. Analog control
3. Motion control
4. Process control
5. Data processing
6. Communication and networking

After-sales service:
Online support and Video technical support.
