Siemens 6ES7214-1BG40-0XB0 1214C CPU Module uses OPC UA Data Access as the server, which can not only realize standardized horizontal and vertical communication but also meet the requirements of industry standards. Siemens 6ES7214-1BG40-0XB0 1214C CPU Module can easily complete the adjustment task and match the industry-specific supporting standards. Siemens 6ES7214-1BG40-0XB0 1214C CPU Module supports cloud connectivity.
Siemens 6ES7214-1BG40-0XB0 1214C CPU Module uses OPC UA Data Access as the server, which can not only realize standardized horizontal and vertical communication but also meet the requirements of industry standards. Siemens 6ES7214-1BG40-0XB0 1214C CPU Module can easily complete the adjustment task and match the industry-specific supporting standards. Siemens 6ES7214-1BG40-0XB0 1214C CPU Module supports cloud connectivity.

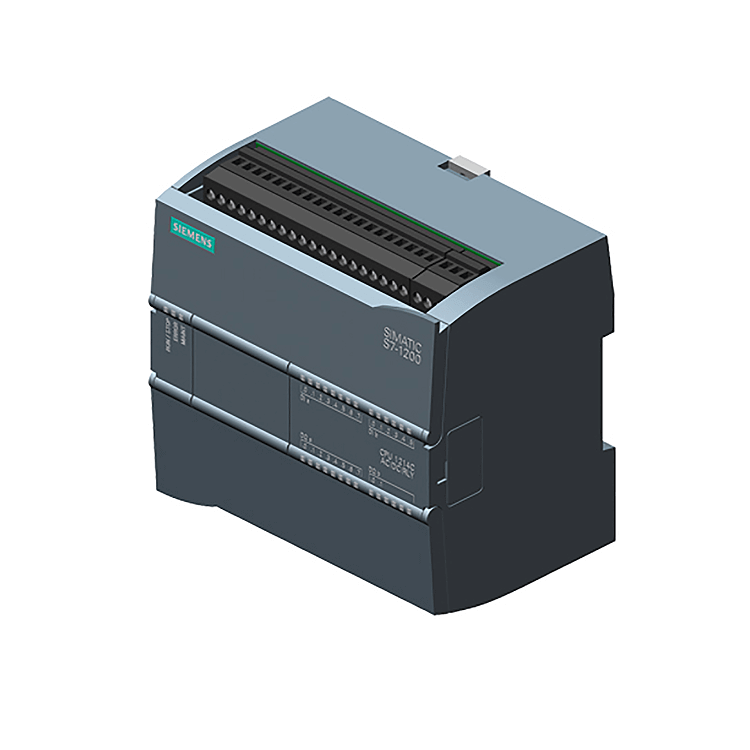

SIMATIC S7-1200, CPU 1214C, compact CPU, AC/DC/relay, onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC, Power supply: AC 85-264 V AC at 47-63 Hz, Program/data memory 100 KB
The SIMATIC S7-1200 CPU can add up to three communication modules. RS485 and RS232 communication modules provide connections for point-to-point serial communication. The extended instruction or library function, USS driver protocol, Modbus RTU master station, and slave station protocols are used in the configuration and programming of the communication, which is all included in the Simatic Step 7 Basic engineering configuration system.

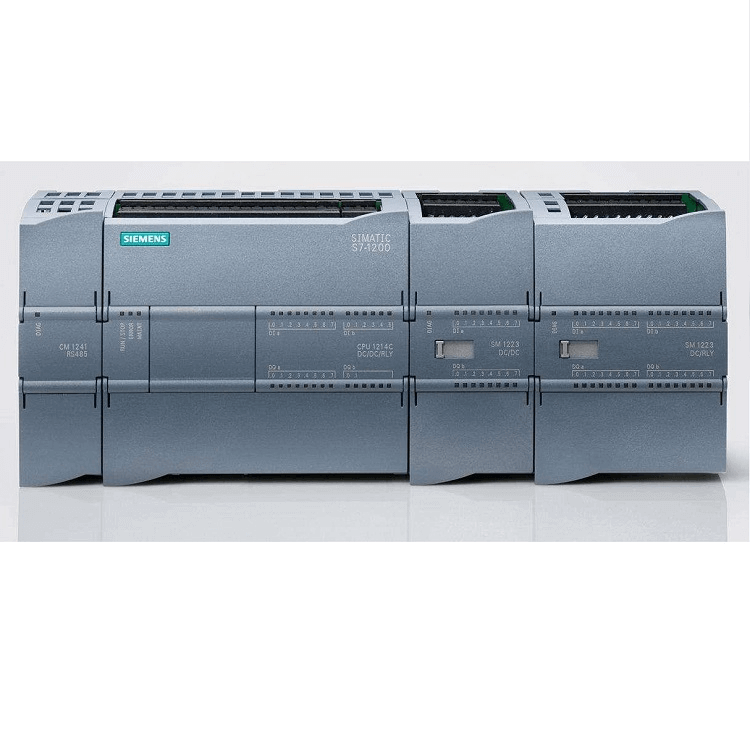

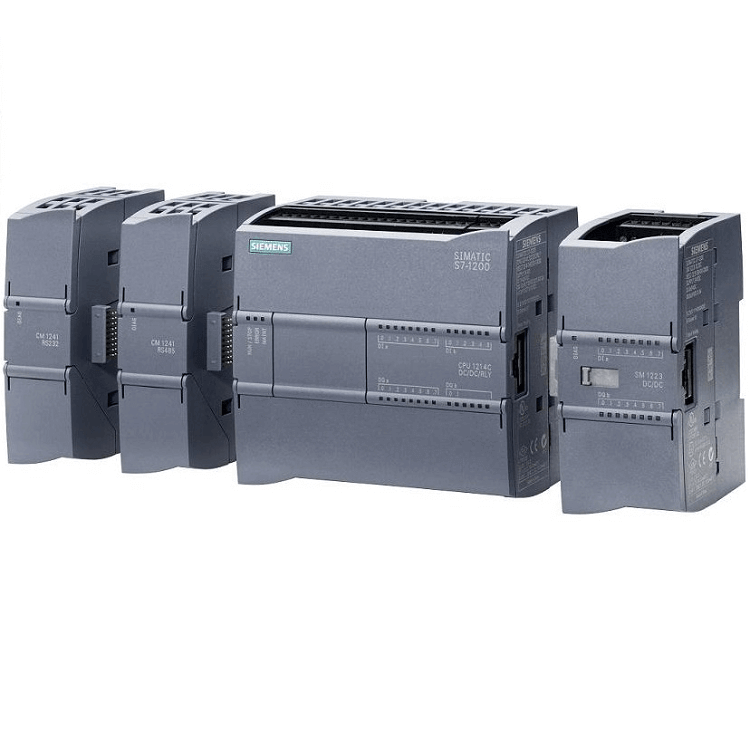

There are three different models of CPUs for the SIMATIC S7-1200 system: CPU 1211C, CPU 1212C, and CPU1214C. Each can be extended to suit the needs of your machine. A signal board can be added to the front of any CPU to extend digital or analog I/O without changing the size of the controller. The signal module can be connected to the right side of the CPU to further expand its digital or analog I/O capacity. CPU 1212C can connect two signal modules, while CPU 1214C can connect eight signal modules. All SIMATIC S7-1200 CPUs can be equipped with up to three communication modules (connected to the left side of the controller) for point-to-point serial communication.
All SIMATIC S7-1200 hardware has built-in clamps that can be conveniently mounted on a standard 35 mm rail. These built-in clamps can be snapped to a protruding position to provide mounting holes if a panel installation is required. SIMATIC S7-1200 hardware can be mounted vertically or horizontally. These integrated features provide maximum flexibility during installation and make the SIMATIC S7-1200 an ideal choice for a wide range of applications.
All Simatic S7-1200 hardware is designed to be compact to save space in the control panel. For example, CPU 1214C is only 110 mm wide, and CPUs 1212C and 1211C are also only 90 mm wide. The communication module and signal module are also very small in size, making this compact modular system greatly saves space, thus giving you maximum efficiency and flexibility in the installation process.
| Product name | Siemens 6ES7214-1BG40-0XB0 1214C CPU Module |
| Manufacturer | Siemens |
| Brand | Siemens |
| Series | S7-1200 |
| Part Number | 6ES7214-1BG40-0XB0 |
| Product Type | CPU Module |
| Input current | Current consumption (rated value) 100 mA at 120 V AC; 50 mA at 240 V AC
Current consumption, max. 300 mA at 120 V AC; 150 mA at 240 V AC Inrush current, max. 20 A; at 264 V I²t 0.8 A²·s |
| Output current | for backplane bus (5 V DC), max. 1 600 mA; Max. 5 V DC for SM and CM |
| Power loss | Power loss, typ. 14 W |
| Size | 110*100*75mm |
| Weight | 455g |
PLC has been widely used in various industries such as steel, petroleum, chemical industry, electric power, building materials, machinery manufacturing, automobiles, textiles, transportation, environmental protection, culture, and entertainment at home and abroad.
The usage can be roughly classified into the following categories
1. Logic control of the switch
2. Analog control
3. Motion control
4. Process control
5. Data processing
6. Communication and networking
After-sales service
Online support and Video technical support.
