Samson valve 3226 pneumatic control valve DIN is mixing or diverting valves for use heating, ventilation, and air-conditioning systems. Samson valve 3226 pneumatic control valve DIN can be assembled with a pneumatic, electric, hydraulic, or electro-hydraulic actuator also offered by the SAMSON group to complete the control valve construction. Samson valve 3226 pneumatic control valve DIN is designed according to the modular assembly principle, can be equipped with SAMSON GROUP actuators and valve accessories such as positioners, limit switches, and solenoid valves.

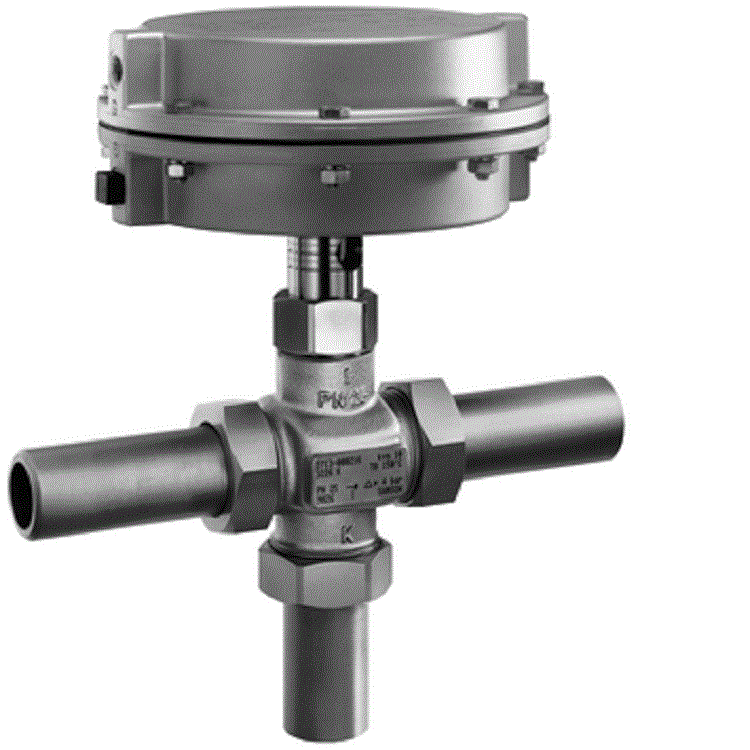

Samson valve 3226 pneumatic control valve DIN
Samson valve 3226 pneumatic control valve DIN designed as a mixing valve with male thread connection and welding ends or threaded ends or with female thread connection
Samson valve 3226 pneumatic control valve DIN designed as a diverting valve with male thread connection and welding ends or threaded ends
Samson valve 3226 pneumatic control valve DIN combined with Type 5857 and TROVIS 5757-7 (with special spring) Force-locking connection between valve and actuator
Samson valve 3226 pneumatic control valve DIN (mixing or diverting valve) in special version: DVGW-tested
Samson valve 3226 pneumatic control valve DIN can be combined with the following actions:
2780-Pneumatic Actuator
special function:
·Single-acting linear actuator with internal spring
· Diaphragm housing is made of die-cast aluminum
·Easy and reversible action direction
accessories:
·Type 2 NI filter
Options:
·DVGW test
special function:
·Composed of the three-way valve and actuator
·External thread connection and welding or threaded end
·The mixing valve also has an internal thread connection
·Suitable for water and non-flammable gas
| Product name | Samson valve 3226 pneumatic control valve DIN |
| Usage | Hybrid or transfer service |
| Version | DIN |
| Medium temperature | -15 to 150°C / 5 to 302°F |
| Valve size | DN 15 to DN
50G½ to G 1 |
| Pressure Level | PN25 |
| Supply | Pneumatic |
| Function | Mixing, regulating |
| Media | For water, for gas |
| Body | Weld |
Control valves are mainly used in the following areas:
1. Petroleum equipment
2. Hydropower station
3. Metallurgy
4. Ocean
5. Food and medicine
6. Rural and urban architecture
7. Rural and urban heating
8. Environmental protection
9. Gas
10. Pipeline
Online support and Video technical support.
