Samson valve 3222 pneumatic DIN use in heating, ventilation, and air-conditioning systems. Samson valve 3222 pneumatic DIN can be assembled with a pneumatic, electric, hydraulic, or electro-hydraulic actuator also offered by the SAMSON group to complete the control valve construction. Samson valve 3222 pneumatic DIN is designed according to the modular assembly principle, can be equipped with SAMSON GROUP actuators and valve accessories such as positioners, limit switches, and solenoid valves.
Samson valve 3222 pneumatic DIN use in heating, ventilation, and air-conditioning systems. Samson valve 3222 pneumatic DIN can be assembled with a pneumatic, electric, hydraulic, or electro-hydraulic actuator also offered by the SAMSON group to complete the control valve construction. Samson valve 3222 pneumatic DIN is designed according to the modular assembly principle, can be equipped with SAMSON GROUP actuators and valve accessories such as positioners, limit switches, and solenoid valves.

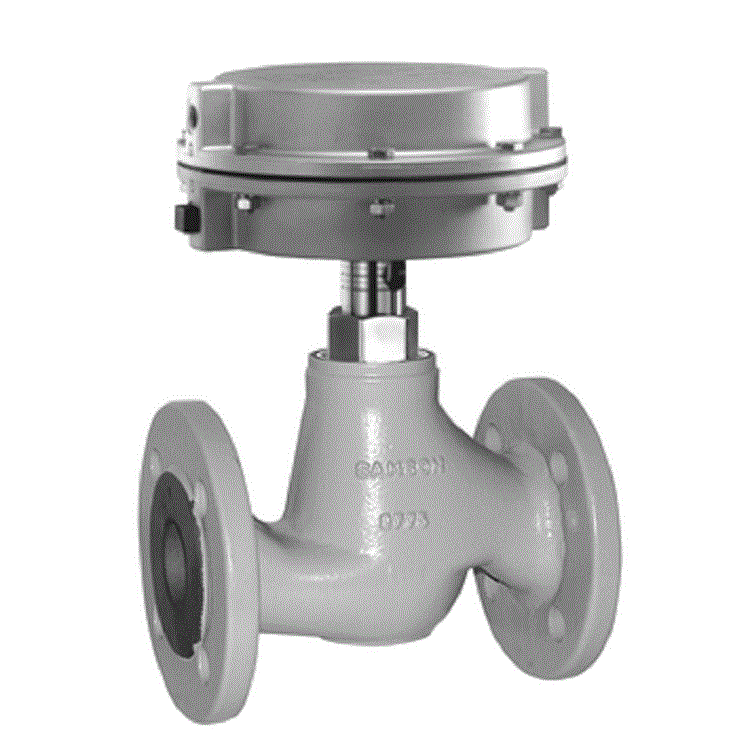

Samson valve 3222 pneumatic DIN
Single-seated globe valves partly available with balanced plugs
Single-seated globe valves optionally available with male thread connection and welding ends, threaded ends, flanges, or with female thread connection as well as with flanged valve body
The force-locking connection between valve and actuator
Samson valve 3222 pneumatic DIN can be combined with the following actions:
2780-Pneumatic actuator
special function:
Single-acting linear actuator with internal spring
Diaphragm housing is made of die-cast aluminum
Easy and reversible action direction
special function
Composed of a single-seat globe valve and actuator
Flange or external thread connection and welding or threaded end or internal thread connection
| Product name | Samson Valve 3222 Pneumatic Control Valve DIN |
| Usage | Throttle service |
| Version | DIN |
| Medium temperature | -15 to 200°C / 5 to 392°F |
| Valve size | DN 15 to DN
50G½ to G 1 |
| Pressure Level | PN25 |
| Supply | Pneumatic |
| Type | Globe |
| Function | Regulating |
| Media | For water, for oil, for steam |
| Body | Flange |
Control valves are mainly used in the following areas:
1. Petroleum equipment
2. Hydropower station
3. Metallurgy
4. Ocean
5. Food and medicine
6. Rural and urban architecture
7. Rural and urban heating
8. Environmental protection
9. Gas
9.10. Pipeline
Online support and Video technical support.
