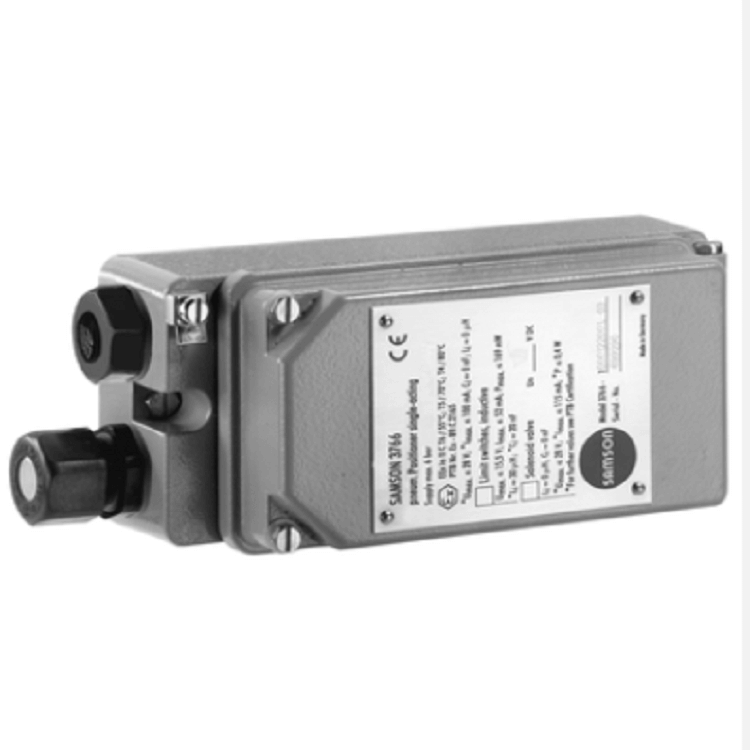

The version of the Samson 3766 pneumatic or electro-pneumatic positioner is an electro-pneumatic positioner with a type 6116 I/P converter. Samson 3766 pneumatic or electro-pneumatic positioner adopts die-cast aluminum or stainless steel housing, it is a linear actuator product that conforms to IEC 60534-6 or SAMSON one-piece accessory. Samson 3766 pneumatic or electro-pneumatic positioner has a reversible direction of action, which can be divided into two modes: normal and split-range operation.
The valve positioner is used to control the accurate positioning of the valve so that the valve position has a predetermined corresponding relationship with the pneumatic or electric control signal output by the controller. The valve positioner compares the input control signal with the valve stroke feedback amount, and according to the comparison result, the corresponding pneumatic output signal pressure pst is amplified and output. The output signal of the valve positioner is the input signal of the pneumatic actuator. For double-acting pneumatic actuators, the valve positioner adds a reverse output pneumatic amplifier, which is a double-acting pneumatic output.
Samson 3766 pneumatic or electro-pneumatic positioner special features
Pneumatic or electropneumatic positioner

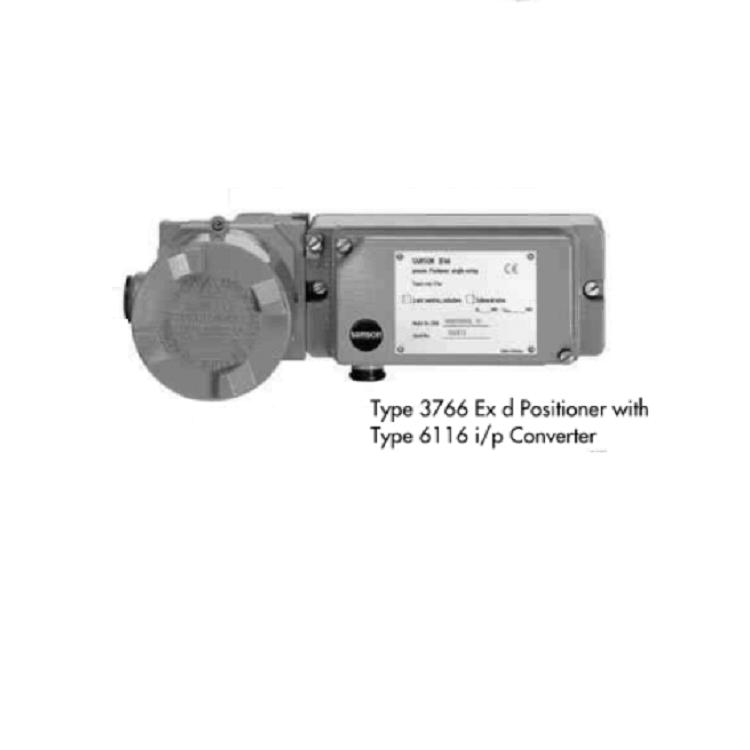

Version as electropneumatic positioner with Type 6116 i/p Converter
Die-cast aluminum or stainless steel housing
Attachment to linear actuators according to IEC 60534-6 or SAMSON integral attachment
Attachment to rotary actuators according to VDI/VDE 3845
Compact, low-maintenance design
Any mounting position possible
Insensitive to mechanical vibrations
The reversible direction of action
Excellent dynamic response
Normal and split-range operation
Adjustable proportional (P) band
Adjustable air output capacity
Low supply air consumption
Accessories
Pressure gauges for supply air and signal pressure
Filter check valve
Options
Low-temperature version
Additional equipment: inductive limit contacts, 3/2-way solenoid valve
Advantages of direct installation and connection of valve positioners
The tight and accurate mechanical connection between the valve positioner and the pneumatic actuator is not affected by
Handling impact.
The concealed valve position feedback connection can prevent external touch and influence, and meet the requirements of accident prevention regulations.
The pneumatic connection between the valve positioner and the pneumatic actuator is simple.
Pneumatic actuators equipped with valve positioners are factory adjusted.
| Product name | Samson 3766 pneumatic or electro-pneumatic positioner |
| Usage | Throttle service
Challenge transportation time Challenging environmental conditions |
| Annex | Linear actuator, single acting
Linear actuator, double acting Rotary actuator, single acting Rotary actuator, double acting |
| Explosion proof | Type of protection “intrinsically safe”
No certification |
| Communication | Not needed |
| Control loop | Pure pneumatic |
| Optional solenoid valve | Need |
| Valve diagnosis | Not need |
| Type | Electro-pneumatic |
| Movement | Rotary, linear |
| Technology | Single-acting, double-acting |
| Other characteristics | Compact, aluminum, stainless steel |
The main application areas of valve positioners include:
1. Coal gasification project
2. Clean energy gasification unit
3. Electricity
4. Hydrocarbons
5. Water supply and water treatment
6.Pulp and paper
7.Industrial environment
8. Food and beverage
9. Life sciences and other fields
Online support and Video technical support.
