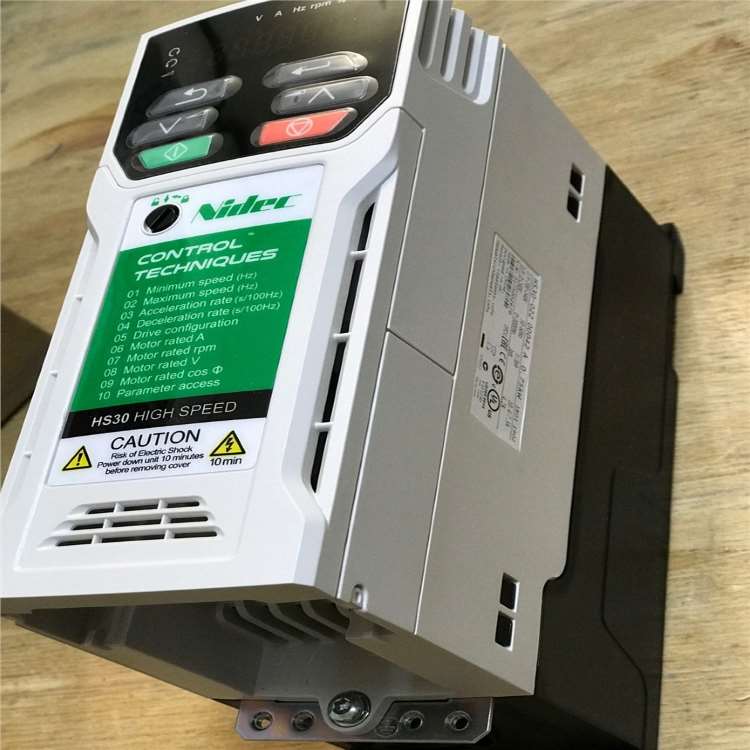

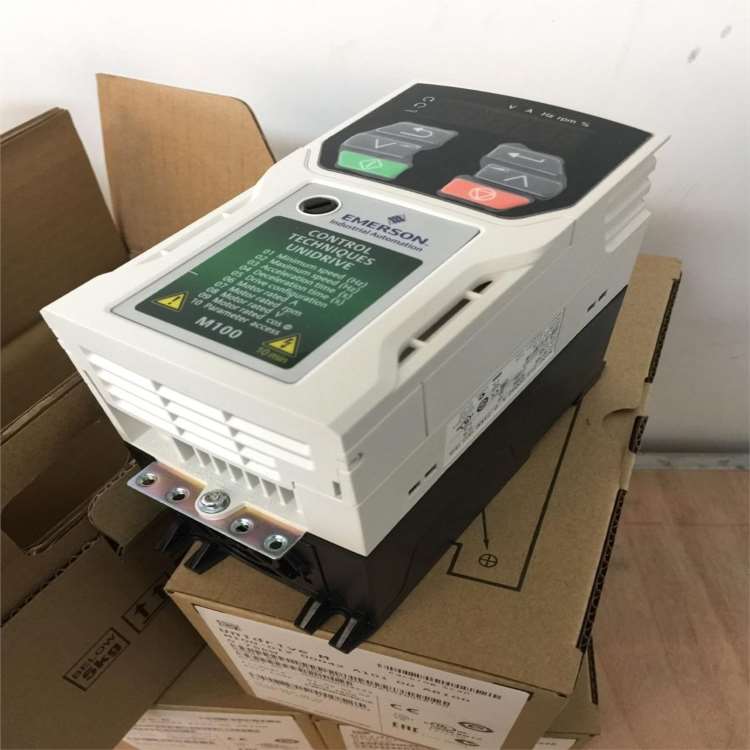

Nidec Inverter M100-02100042A10100AB100

Nidec Inverter M100-02100042A10100AB100 mainly used to control and adjust the speed of three-phase AC asynchronous motor, with its stable performance, rich combination of functions, good dynamic characteristics, super overload capacity and incomparable flexibility, in the frequency converter market occupies an important position.And Nidec Inverter M100-02100042A10100AB100 widely used in various industrial fields, especially in the elevator, textile, machine tools, lifting transportation and port industries.

Product Features:

Full series of independent duct design, cooling duct and electrical part are separated, reduce the failure rate of electrical part;Compact design, through thermal design and simulation to make small product volume, the volume is only about 70% of the same power of mainstream brands;Graphical keyboard, in line with the operating habits of most people;Operation panel double crystal head standard RJ45 interface, enhance communication anti-interference power, convenient customer extension;The material of the case is solid, and a large number of aluminum and zinc plates and spraying protection design not only ensure good grounding and shielding performance, but also take into account the anti-corrosion performance of the product;Full series DC cooling fan design, reduce the cooling system failure caused by AC fan failure.

Nidec Inverter M100-02100042A10100AB100 have following features:

1.Small size, easy to operate
2.Excellent performance
3.A variety of industry-specific functions
4.Nidec Inverter M100-02100042A10100AB100 has Excellent adaptability to environment
5.Dust and oil pollution capacity
6.Rich standard configuration
7.Equipped with brake unit
8.High speed control precision, convenient to achieve high precision synchronous control
9.Automated single board and whole machine test, ensure no test blind spot
10.The real hardware speed tracking function is more stable and reliable than the software tracking function, and there will be no sudden flying and other phenomena

Product Parameters:

Model M100-02100042A10100AB100
The rated voltage 100-400V
Rated current
Range of application General
The output type A one-way
Switch mode PAM controls the frequency converter
Output voltage regulation mode PAM control
The power phase number Three-phase
Product certification ISO9001
Overall dimensions 54mm*30mm*51mm
Product series M100-02100042A10100AB100
Rated power 0.75kW
Weight 7.5kg
Brand Nidec
Frequency Power frequency
Operating mode of main circuit Current mode
The control mode Current vector
Filter Without filter
The power supply voltage The low pressure
Processing customized No

Application and After-Sales Service:

Application of Nidec Inverter M100-02100042A10100AB100
1. Plastic machinery,
2.Textile machinery,
3.Tobacco machinery,
4.Ceramic machinery,
5.Pharmaceutical machinery,
6.Food machinery/printing machinery,
7.Packaging machinery,
8.Central air conditioning and other special equipment.

After-sales service
Online support and Video technical support.
