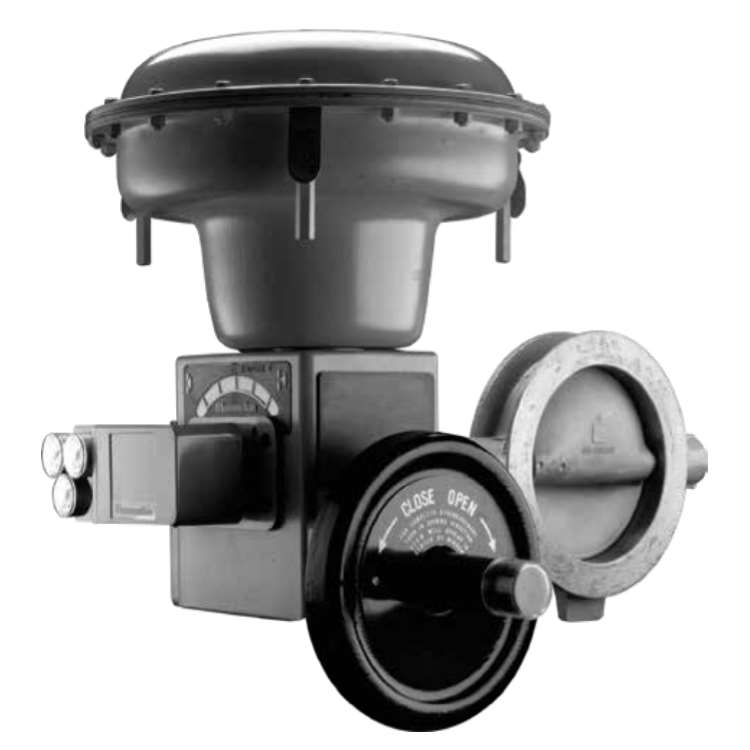

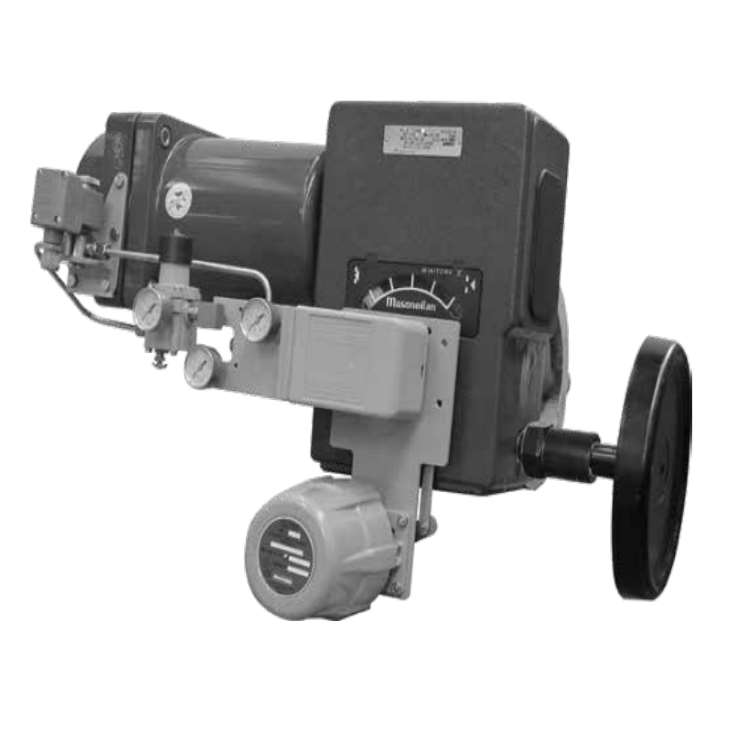

37002 Series Minitork* II Butterfly Control Valves
The Masoneilan Conventional Butterfly Control Valves of Masoneilan 37002 is a heavy duty automatic throttling Masoneilan Conventional Butterfly Control Valves of Masoneilan 37002 that provides superior performance by incorporating the features of Low Dynamic Torque – the unique cupped shape disc results in a dynamic torque considerably lower than conventional butterfly valves.
The Masoneilan Conventional Butterfly Control Valves of Masoneilan 37002 have following features:

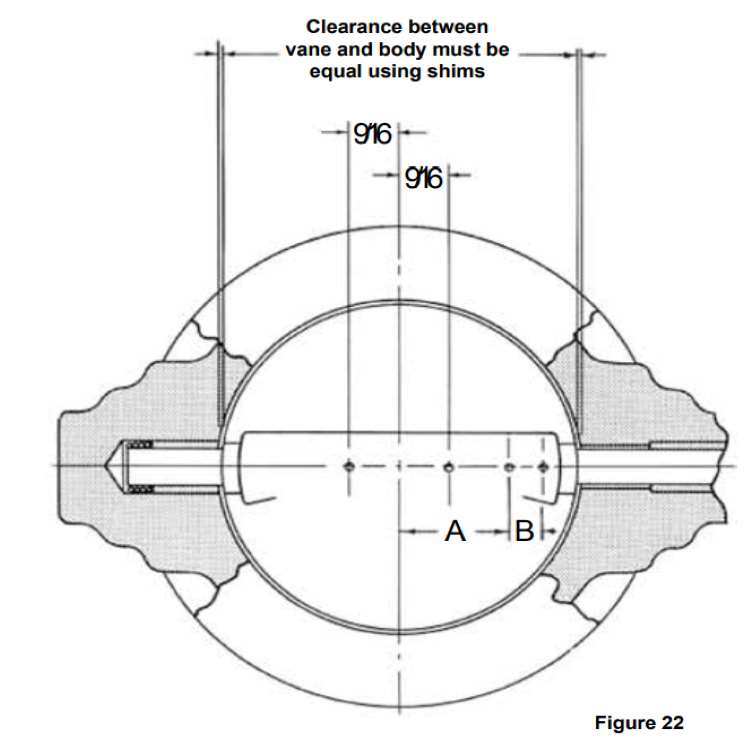

Bi-Directional Flow – The reverse cupped construction of the Minitork disc is not self-limiting. Accordingly, the low torque can be maintained regardless of flow direction.

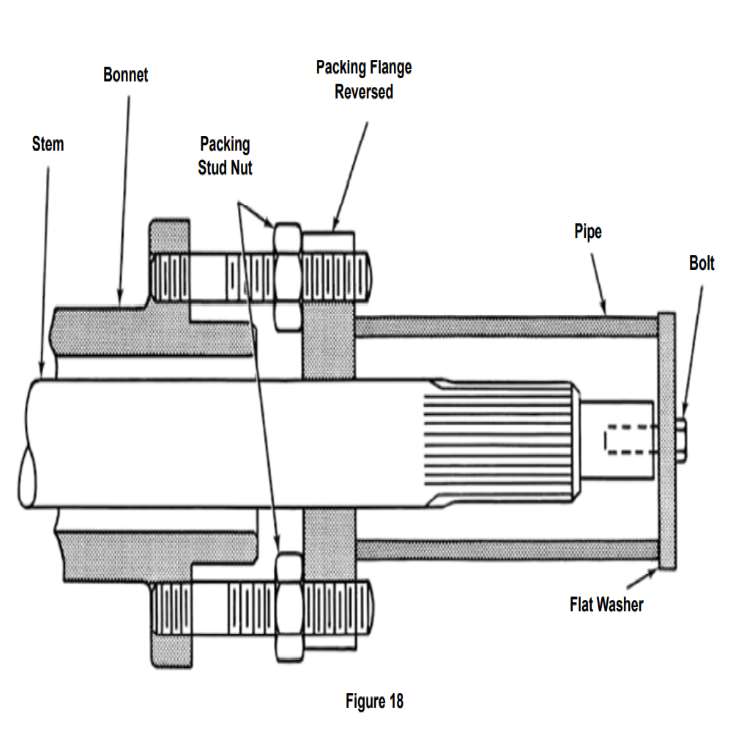

Deflection-free and backlash-free operation. Splined and clamped construction with an ouboard ball bearing and a rigid bracket assembly provide the structural rigidity required for precise positioning.
Direct Mounted Positioners – Position feedback of Masoneilan Conventional Butterfly Control Valves of Masoneilan 37002 is directly connected to the valve shaft eliminating potential lost motion and providing improved positioning accuracy.
Triple Bearing System – provides exceptional support and guiding for the shaft.
Valve Position Indicator – highly visible, which allows quick visual inspection of disc position.
Integrally Cast Extension Bonnet – provides ability to handle wide range of process temperatures.
Spring Diaphragm Actuator – with total enclosure of all moving parts provides increased resistance to environmental corrosion.
The current estimated useful life period for the 37002 Series MiniTork II control valves is 25+ years. To maximize the useful life of the product, it is essential to conduct annual inspections,routine maintenance and ensure proper installation to avoid any unintended stresses on the product. The specific operating conditions will also impact the useful life of the product. Consult the factory for guidance on specific applications if required prior to installation.
| O.D. Tube System – Thin Wall | |||||
| Working Pressure |
Pipe | Spacer Ring | |||
| Size (in.) |
I.D. (in.) |
O.D. (in.) |
I.D. (in.) |
T (in.) | |
| 125 lb WP | 3 | 2.870 | – | – | – |
| 4 | 3.870 | 6 3/4 | 4 1/32 | 1/4 | |
| 6 | 5.870 | 8 5/8 | 16 1/16 | 3/8 | |
| 8 | 7.870 | 10 7/8 | 8 | 1/2 | |
| 10 | 9.870 | 13 3/4 | 10 | 3/4 | |
| 12 | 11.844 | 16 | 12 | 5/8 | |
| 250 lb WP | 3 | 2.870 | – | – | – |
| 4 | 3.870 | 7 | 14 1/32 | 1/4 | |
| 6 | 5.844 | 9 3/4 | 6 1/16 | 3/8 | |
| 8 | 7.782 | 12 | 8 | 5/8 | |
| 10 | 9.750 | 14 1/8 | 10 | 7/8 | |
| 12 | 11.720 | 16 1/2 | 12 | 3/4 | |
Applicable Industries of Masoneilan Conventional Butterfly Control Valves of Masoneilan 37002
Power Generation,Refining, Midstream Oil & Gas, Upstream Oil & Gas.
Key Applications : Condenser, Cooling Tower, Gas Turbine, Balance Of Plant, Distillation, Blending, Dehydration, Refrigeration, Liquifaction, Loading/Shipping, Regasification, Auxillary, Compression.
