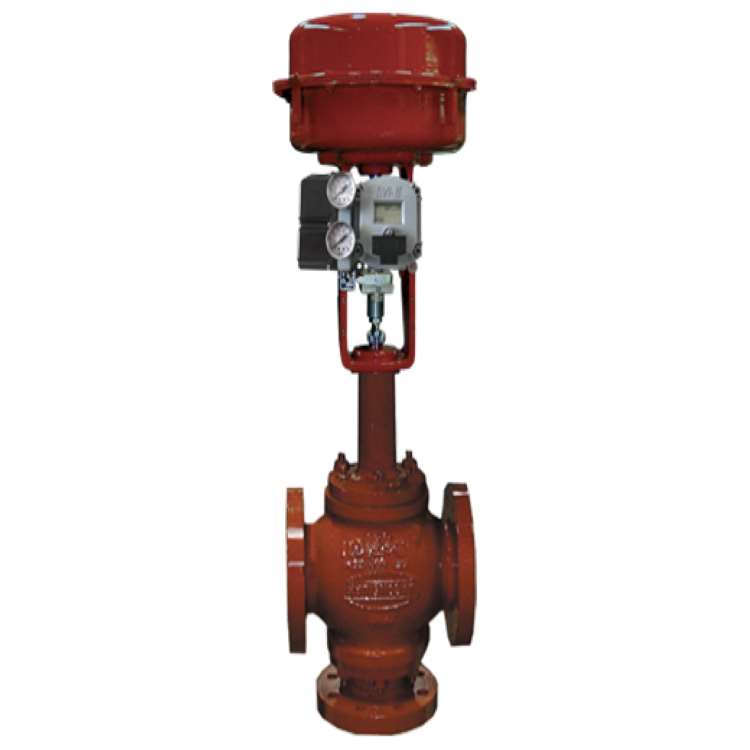

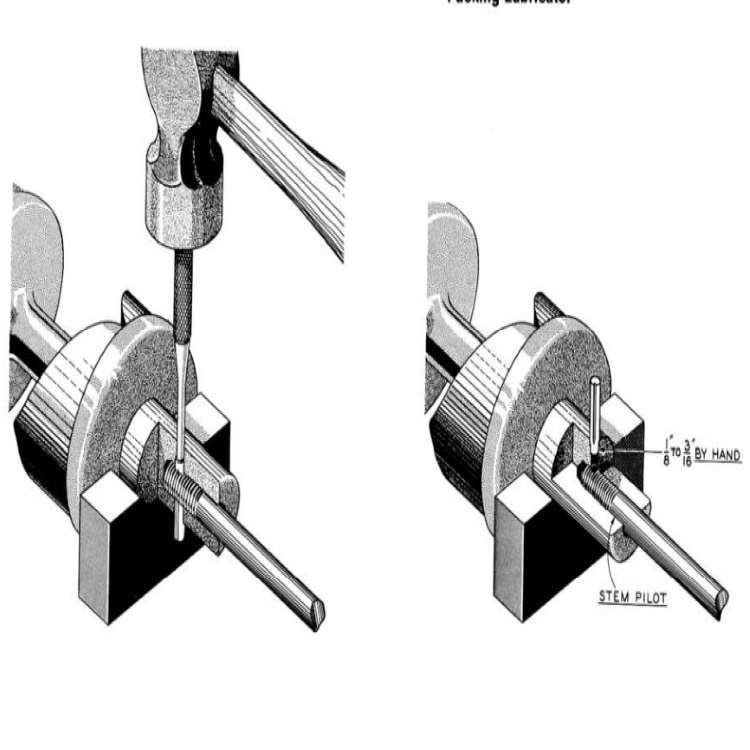

The Masoneilan 80000 Series 3-Way Control Valve is a heavy-duty three-way control valve designed for either combining or diverting service. Large flow paths offer effective dirty service capabilities and high flow capacities. Heavy valve plug and stem guiding provide dynamic stability resulting in excellent process control and improved process yields. Top and bottom entry access to the Masoneilan 80000 Series 3-Way Control Valve internal components results in easy in-line access for maintenance and repair.
Masoneilan 80000 Series 3-Way Control Valve has the following features:
Heavy Guiding
Construction of the Masoneilan 80000 Series 3-Way Control Valve includes top guiding in the plug, as well as guidance within the seat ring locations providing an extremely well supported and stable design.
High Capacity
Large flow galleries in the 80000 Series provide high capacity designs with low-pressure recoveries. High critical flow factors are attained in both combining and diverting configurations.
Flow Stability

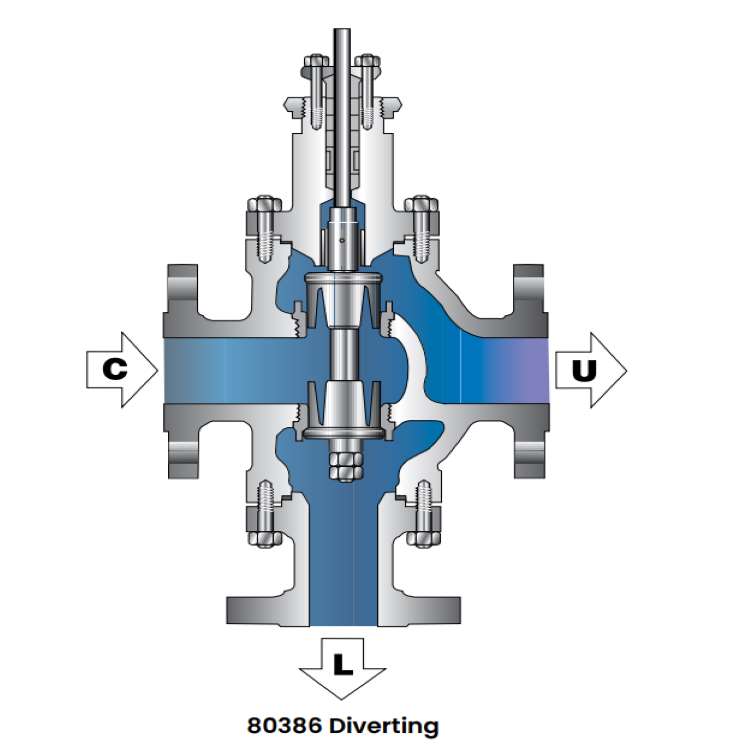

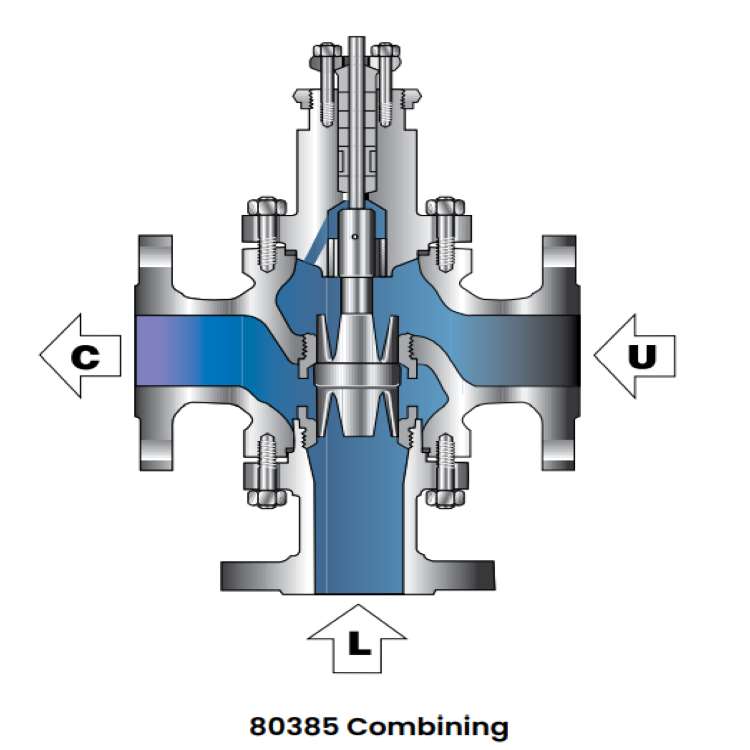

The 80000 Series is a dual seated design with flow tending to open the valve at both ports. This provides inherent dynamic stable resulting in excellent throttling control performance.
Wide Operating Range
Designs are available in various sizes and can be configured to operate within an extremely wide temperature range. This is accomplished through the use of high-performance materials and design configurations.
Reduced Emissions
The 80000 Series can be supplied with the Masoneilan LE Packing design to provide low emissions performance meeting various environmental regulations worldwide.
NACE Compliance
Construction for Sour Service Applications in accordance with NACE standard MR 0103 is readily available. Applications requiring compliance to MR 0175, 2003 Rev, or ISO 15156 can also be provided.
The Masoneilan 80000 Series 3-Way Control Valve is a heavy-duty three-way control valve designed for either combining or diverting service. Large flow paths offer effective dirty service capabilities and high flow capacities. Heavy valve plug and stem guiding provide dynamic stability resulting in excellent process control and improved process yields. Top and bottom entry access to the Masoneilan 80000 Series 3-Way Control Valve internal components results in easy in-line access for maintenance and repair.

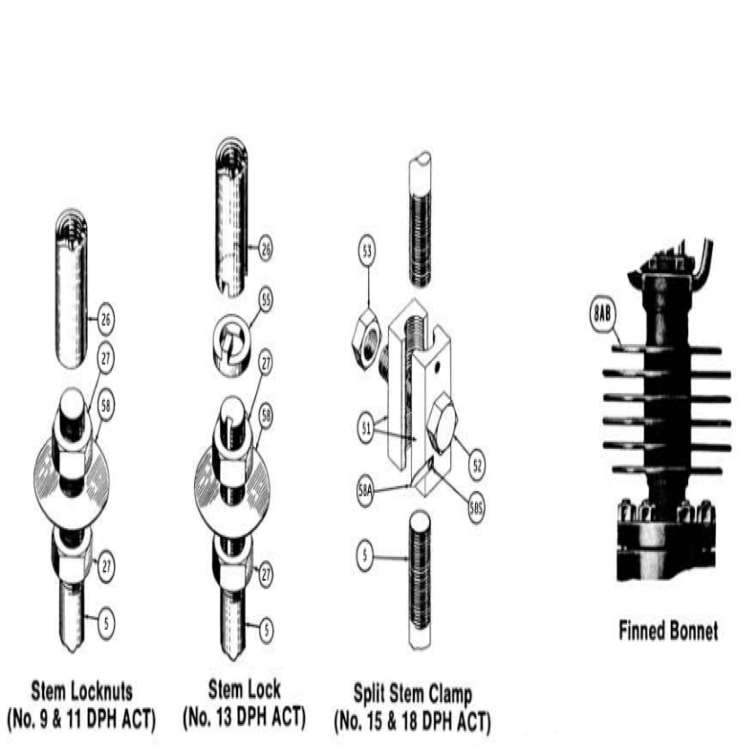

| Model | Masoneilan 80000 | |
| Body | Type | 3-way |
| Flow Direction | Flow to open (both ports) | |
| C V Ratio | 50:1 | |
| Materials | Carbon steel | |
| Stainless steel | ||
| Chrome-molybdenum steel | ||
| Others | ||
| Bonnet | Type | Bolted |
| Packing Box | Bolted | |
| Optional | Extension | |
| Materials | Carbon steel | |
| Stainless steel | ||
| Chrome-molybdenum steel | ||
| Others | ||
Applicable Industries of Masoneilan 80000 Series 3-Way Control Valve
Power Generation
Key Applications : Reactor Building, Turbine Building, Reactor Facility Grounds & BOP, Heat Recovery Steam Generator.
