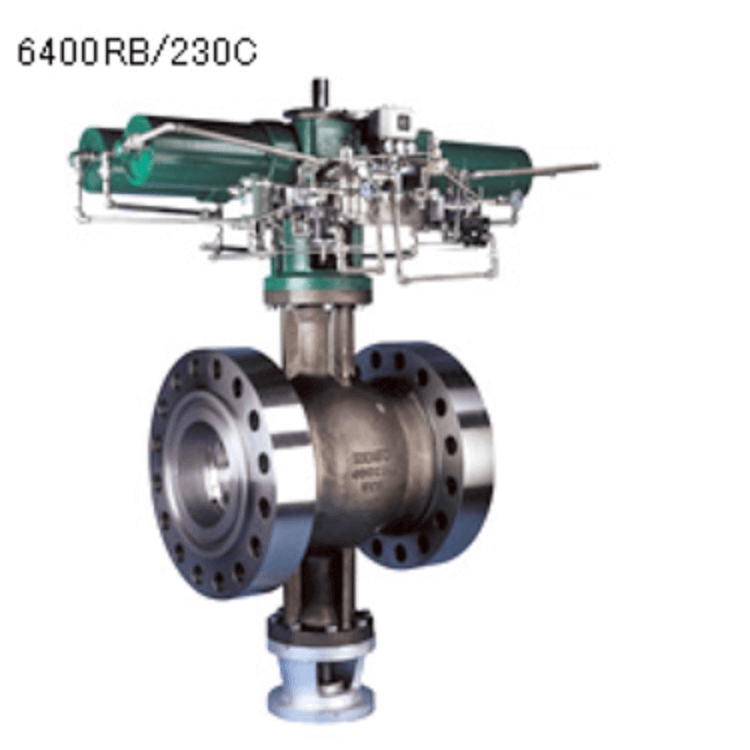

KOSO 230C Concentric Segmental Ball Valves are same as 210C series except that the stem penetrates the body and is supported by double gland packing. KOSO 230C Concentric Segmental Ball Valves’s stem’s blow out force is set off in this construction. KOSO 230C Concentric Segmental Ball Valves make it suitable to heavier services such as high pressure, high temperature service because of heat expansion insulation design stem.
KOSO 230C Concentric Segmental Ball Valves are same as 210C series except that the stem penetrates the body and is supported by double gland packing. KOSO 230C Concentric Segmental Ball Valves’s stem’s blow out force is set off in this construction. KOSO 230C Concentric Segmental Ball Valves make it suitable to heavier services such as high pressure, high temperature service because of heat expansion insulation design stem.
The opening and closing parts of KOSO 230C Concentric Segmental Ball Valves are driven by the valve stem and rotate around the axis of the ball valve. It can be used for fluid adjustment and control. The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. It only needs to rotate 90 degrees and a small torque can be closed tightly. Ball valves are most suitable for use as on-off and shut-off valves.
1. Small flow resistance;
2. Simple structure;
3, Small size, lightweight;
4, The ball valve sealing surface material selection of plastic, good sealing;
5, Easy to operate, open and close quickly, convenient for remote control;
6, Easy maintenance, the sealing ring is generally active, easy to disassemble and replace;
7. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause the erosion of the valve sealing surface through the medium.
| Product name | KOSO 230C Concentric Segmental Ball Valves |
| Body type | 230C |
| Body size | 6″(150A) to 24″(600A) |
| Body rating | ANSI Class 150 to 1500, JIS 20K to63K |
| Fluid temperature | -45 to +650° |
| Connections | Flanged (RF, RTJ) |
| Body materials | SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. etc. |
| Disc materials | SCS13A, SCS14A |
| Disc treatment | Chrome plated or Stellited |
| Seal ring materials | R.TFE, SUS304, 316 |
| Rangeability | 100:1 |
| Flow characteristics | Approximate Eq% (Inherent Characteristic) |
Control valves are mainly used in the following areas:
1. Petroleum equipment
2. Hydropower station
3. Metallurgy
4. Ocean
5. Food and medicine
6. Rural and urban architecture
7. Rural and urban heating
8. Environmental protection
9. Gas
10. Pipeline
Online support and Video technical support.
