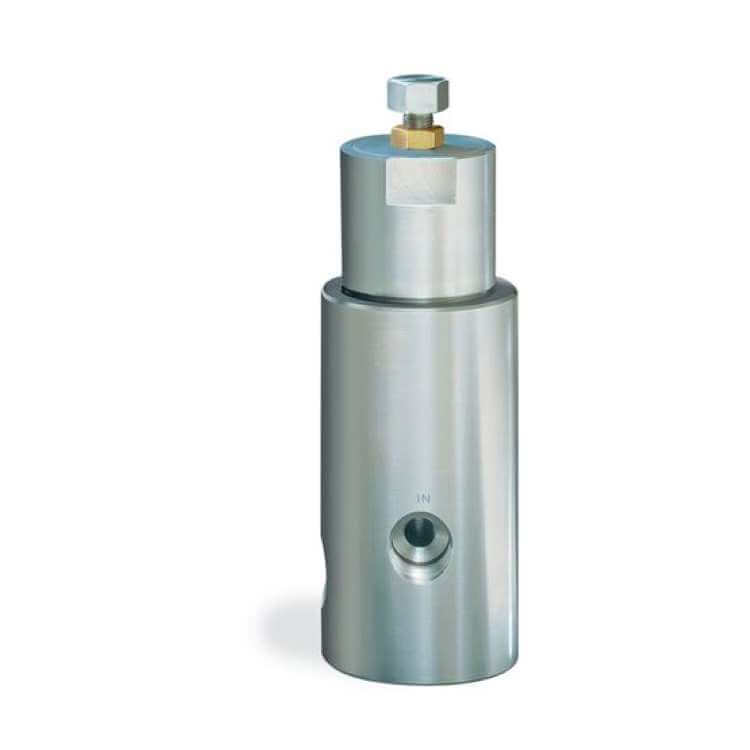

The Hydraulic voltage regulators of TESCOM 54-2200 series reduced pressure regulators are an excellent choice for high flow and high-pressure hydraulic applications.Inlet and outlet pressures are rated up to 8000 PSIG / 552 bar, CV = 2.0 for flow rates up to 60 GPM / 127 LPM.Spring, air, and chamber load models are available. Hardened stainless steel seats and spool provide excellent wear resistance. Hydraulic voltage regulators of the TESCOM 54-2200 series are ideal for testing hydraulic operated blowout preventer (BOP), hydraulic power components (HPU), and hydraulic components.
54-2200 Series pressure reducing regulator is designed for high flow and high-pressure hydraulic applications. Inlet and outlet pressure is rated up to 8000 PSIG / 552 bar with Cv = 2.0 for flows up to 60 GPM / 127 LPM. Spring, air, and dome-loaded versions are available. Hardened Stainless Steel seat and poppet delivers excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP), hydraulic power units (HPU), and hydraulic component testing.
The Hydraulic voltage regulators of the TESCOM 54-2200 series have the following features:
Rugged design for harsh environments
Pressure damped orifice improves stability
Piston type sensors, balanced main spool, and non-adjustable manual discharge system are used
Hardened 17-4 stainless steel seats aid in longer service in abrasive hydraulic applications
Side mounting is standard

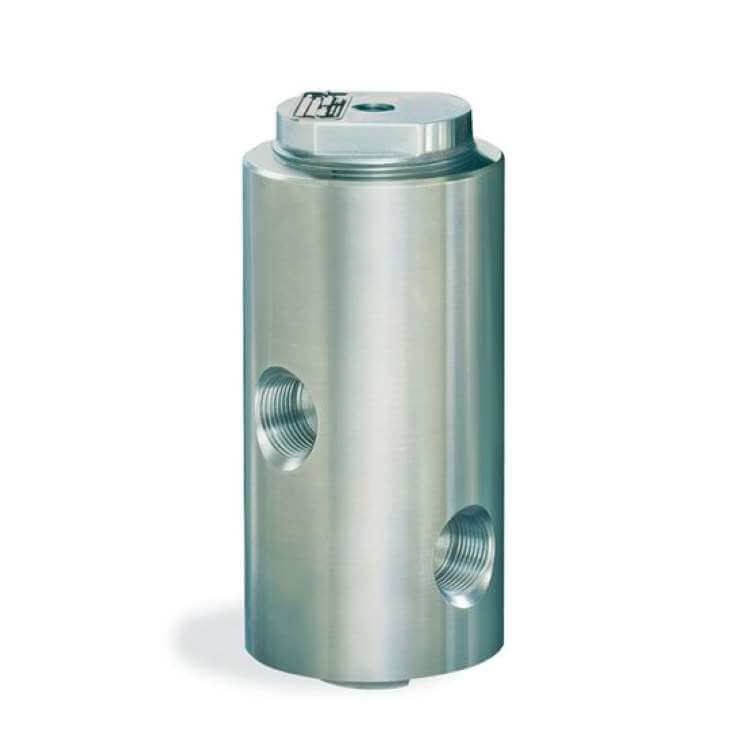

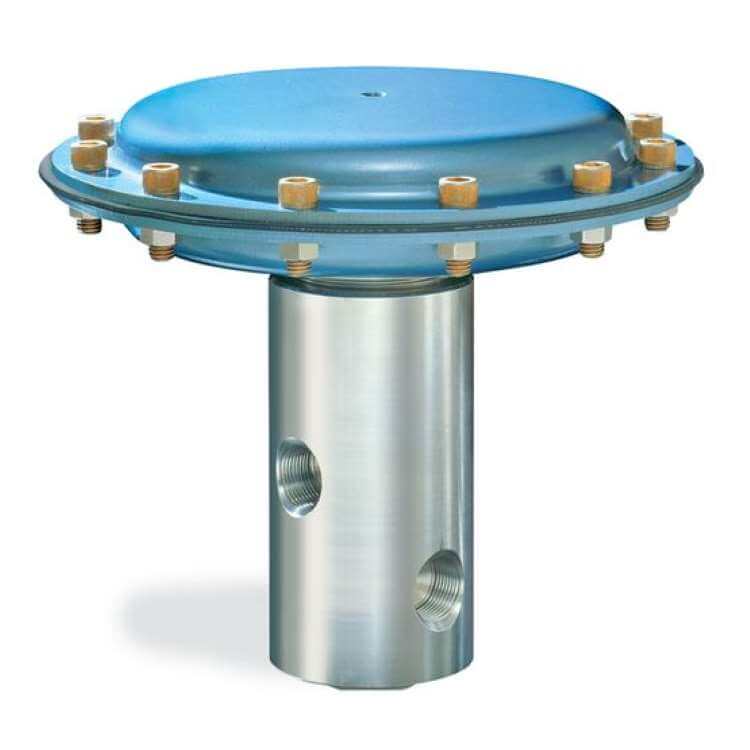

Spring, hydraulic/chamber and air-loaded versions are available
Hydraulic voltage regulators of the TESCOM 54-2200 series is compatible with TESCOM ER5000 electronic pneumatic controller
Flanged end fittings are provided
The Hydraulic voltage regulators of TESCOM 54-2200 series reduced pressure regulators are an excellent choice for high flow and high-pressure hydraulic applications.Inlet and outlet pressures are rated up to 8000 PSIG / 552 bar, CV = 2.0 for flow rates up to 60 GPM / 127 LPM.Spring, air, and chamber load models are available. Hardened stainless steel seats and spool provide excellent wear resistance. Hydraulic voltage regulators of the TESCOM 54-2200 series are ideal for testing hydraulic operated blowout preventer (BOP), hydraulic power components (HPU), and hydraulic components.
| Model | Tescom 54-2200 |
| Maximum inlet pressure | 8000 psig / 552 bar |
| The outlet pressure range | 1500, 3000, 5000, 6000, 8000 psig / 103, 207, 345, 414, 552 bar |
| Material | Body: 303 or 316 stainless steel |
| Main valve, sensor: 17-4 pH stainless steel | |
| O-ring: Nitrile butadiene rubber, Viton-A®, Kalrez®, vinyl propylene rubber | |
| Support ring: Teflon® | |
| Bonnet and other parts | 303 stainless steel |
| Interface size and type | 3/4″ |
| SAE, NPTF, MS33649 | |
| 1/2 “and 1” | |
| The flange | |
| Flow capacity of the main valve | CV = 2.0 |
| Flow capacity of the discharge valve | CV = 1.6 |
| Load type | spring, air chamber, air |
| Weight | 15 lb / 6.8 kg |
Application of Hydraulic voltage regulators of TESCOM 54-2200 series
Testing hydraulic operated blowout preventer (BOP),
Hydraulic power components (HPU)
Hydraulic components.
