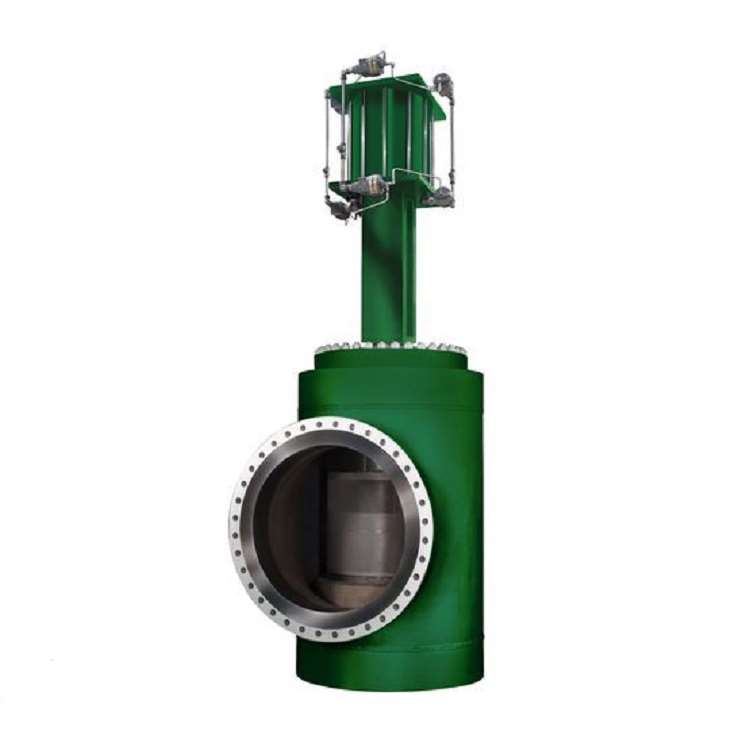

Fisher FB, FBG Welded Angle and Straight Way Valves – Fisher control compressible fluids for special applications requiring maximum noise reduction and high flow capacity. Typical applications include main steam pressure relief valves and compressor bypass valves. Fisher FB, FBG Welded Angle and Straight Way Valves – Fisher are also commonly used in acid gas applications in petrochemical and natural gas processing plants.
Fisher FB, FBG Welded Angle and Straight Way Valves – Fisher control compressible fluids for special applications requiring maximum noise reduction and high flow capacity. Typical applications include main steam pressure relief valves and compressor bypass valves. Fisher FB, FBG Welded Angle and Straight Way Valves – Fisher are also commonly used in acid gas applications in petrochemical and natural gas processing plants.
Fisher FB, FBG Welded Angle and Straight Way Valves – Fisher have following features:
Noise Reduction — The Whisper Trimtmiii or Whisperflotm cage used in FBD, FBGT or FBT valves reduces noise generated by high flow rates and large pressure drops.
Small noise generation — Using an extended outlet design, the outlet flow rate is reduced, thus significantly reducing the generated valve noise.
Suspend cage design – This design reduces gasket sealing problems caused by expansion and contraction of long components such as cage assemblies.

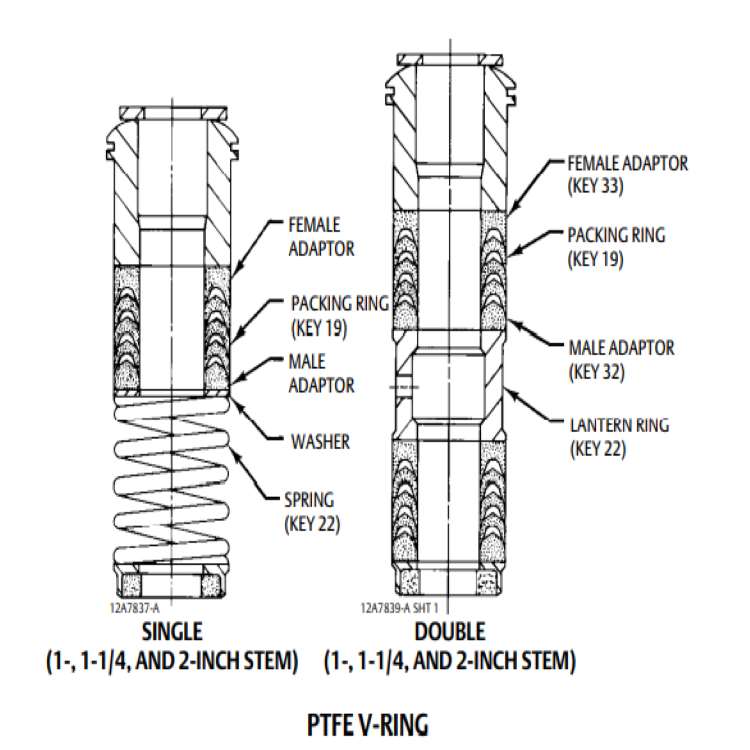

Excellent SEAL performance — Enviro-SealTM and high-seal packing systems are available.These packing systems provide excellent sealing, steering and load transfer performance.
TIGHT SHUTOFF — Fisher FB, FBG Welded Angle and Straight Way Valves – Fisher are equipped with a spring-loaded seal ring with a PEEK escape ring for class V shutoff at up to 316°C (600°F).
1. Coal gasification project
2. Clean energy gasification unit
3. Electricity
4. Hydrocarbons
5. Chemicals
6. Pulp and paper
7. Petroleum chemical industry
8. Natural gas processing plant
| Model | Fisher FB | |||||
| VALVE SIZE INLET X OUTLET, NPS |
Whisper Trim™ III Levels A, B, C | Whisper Trim III Level D | WhisperFlo™ Trim | |||
| Port Diameter | Port Diameter | Port Diameter | ||||
| mm | Inches | mm | Inches | mm | Inches | |
| 8 x 12 10 x 12 |
171 | 6.75 | 132 | 5.1875 | 178 | 7 |
| 10 x 16 12 x 16 16 x 16 |
197 | 7.75 | 171 | 6.75 | 178 | 7 |
| 12 x 18 16 x 18 |
252 | 9.9375 | 197 | 7.75 | 178 | 7 |
| 10 x 20 12 x 20 16 x 20 20 x 20 |
275 | 10.8125 | 224 | 8.8125 | 279 | 11 |
| 12 x 24 16 x 24 18 x 24 20 x 24 24 x 24 |
352 | 13.875 | 275 | 10.8125 | 375 | 14.75 |
| 16 x 30 20 x 30 24 x 30 30 x 30 |
430 | 16.9375 | 378 | 14.875 | 464 | 18.25 |
| 20 x 36 24 x 36 30 x 36 36 x 36 |
506 | 19.9375 | 430 | 16.9375 | 464 | 18.25 |
Application of Fisher FB, FBG Welded Angle and Straight Way Valves – Fisher
1. Coal gasification project
2. Clean energy gasification unit
3. Electricity
4. Hydrocarbons
5. Chemicals
6.Pulp and paper
7. Petroleum chemical industry
8. Natural gas processing plant
