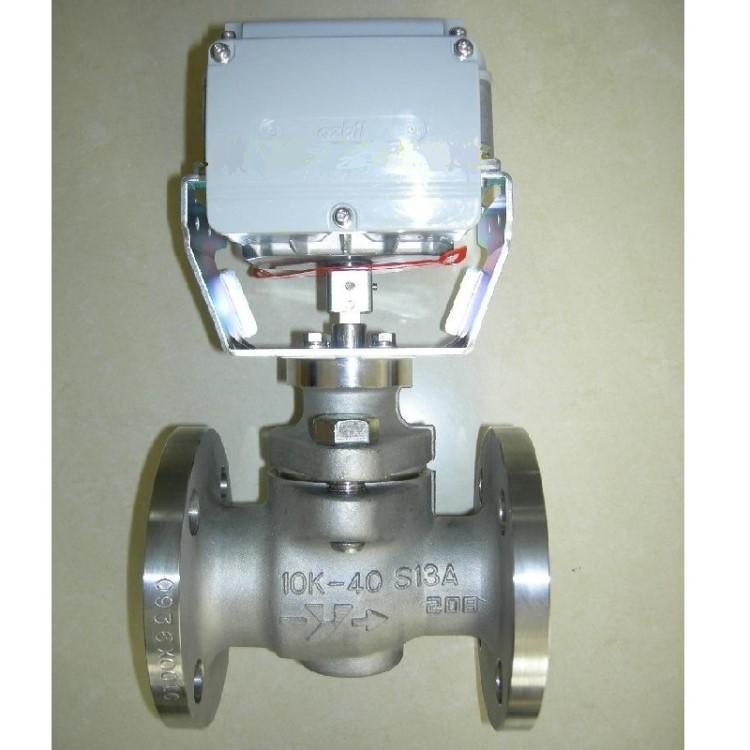

Azbil ACT/AGVB/AGVM/HLS Electric regulating valve is an electric three-way valve with flanged connectors. It is a series of products with valve and actuator as one body. Azbil ACT/AGVB/AGVM/HLS Electric regulating valve is used to control cold/hot water and the body pressure rating is JIS*10K.The actuator is equipped with a reversible synchronous motor and can operate at low voltage 24VAC. Azbil ACT/AGVB/AGVM/HLS Electric regulating valve can be manipulated using five control signals. Built-in feedback potentiometer, matching with proportional control electronic controller, can realize proportional control.
Azbil ACT/AGVB/AGVM/HLS Electric regulating valve is an electric three-way valve with flanged connectors. It is a series of products with valve and actuator as one body. Azbil ACT/AGVB/AGVM/HLS Electric regulating valve is used to control cold/hot water and the body pressure rating is JIS*10K.The actuator is equipped with a reversible synchronous motor and can operate at low voltage 24VAC. Azbil ACT/AGVB/AGVM/HLS Electric regulating valve can be manipulated using five control signals. Built-in feedback potentiometer, matching with proportional control electronic controller, can realize proportional control.
A variety of material specifications are available
It provides carbon steel, high corrosive stainless steel, resin material and other body materials for general use, such as water, steam, fuel oil, etc.
No control air source is required of Azbil ACT/AGVB/AGVM/HLS Electric regulating valve
It can be used for all kinds of devices and air conditioning equipment without control air source.
Drip-proof structure
Equivalent to NEMA4X, IP65 drip-proof structure.
Motor protection mechanism
Built-in thermal protector to prevent motor burnout.
Valves have bodies made of carbon steel for general-use applications like controlling water, steam, and fuel oil, etc., or made of highly corrosion-resistant stainless steel, resin material, etc., as needed for corrosive fluids.
Valves are suitable for use in various types of equipment without an instrumentation equipment air facility or air conditioning.
The drip-proof structure is equivalent to NEMA4X, IP65.
Valves are equipped with a thermal protector to prevent motor burnout.
Feedback is available via 4-20 mA analog standard signal, contact signal, and resistance output.
Soft seat tight shutoff (ANSI class VI) is available.
The valves offer wide rangeability.
| Model | Azbil ACT/AGVB/AGVM/HLS |
| Size | 11/2″ to 2″ |
| Pressure rating | AGVB : ANSI/JPI 150, JIS10K
AGVM : ANSI/JPI 300, JIS16K to 30K |
| End connection | Flanged : RF, FF
Welded : SW, BW |
| Body material | Carbon steel
Stainless steel |
| Trim material | 440CSS
316SS, 316SS with CoCr-A 316LSS, 316LSS with CoCr-A |
| Temperature range | -196 to 400°C |
| Leakage performance | Class IV, VI |
| Cv range | 0.1 to 50 |
| Range ability | 20:1 to 50:1 (option 75:1) |
| Application | flow control of saturated vapor,
cold and hot water, etc. |
Application of Azbil ACT/AGVB/AGVM/HLS Electric regulating valve
Iron and steel,
petroleum,
chemical,
cement,
food,
metallurgy,
paper making,
electric power,
monitoring,
water conservancy and hydropower,
machinery, etc
